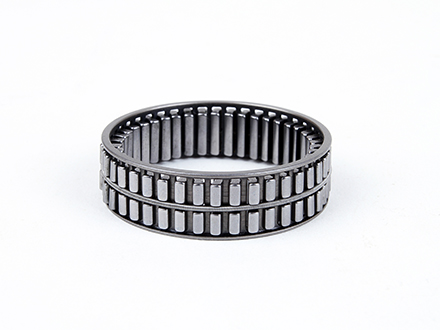

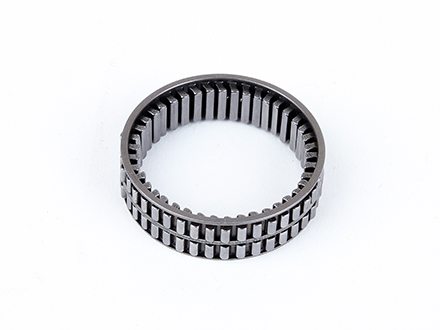

DE4048单向内芯

DE系列是一个使用于标准尺寸离合器上带有支撑的保持架。较小的尺寸和高传输扭矩提供了一些有趣的技术和节约成本的解决方案。紧密贴合多个保持架来增加扭矩。当用来加工生产时必须严格遵守以下规定：

耀世娱乐1）表面硬度达到60/62 HRC

2）经过淬炼后有1毫米最小回火深度

耀世娱乐3）确保内外圈同心旋转

4）可以使用润滑剂

耀世娱乐The DE Series.... is a cage with contact elements running on a metric sized freewheel race.The smaller dimensions and the high transmission torque offer some interesting technical and cost-saving solutions.Fitting multiple cages side-by-side increases torques.When the sliding race is machined in the seats or on the shafts,the following specifications must be adhered to:

耀世娱乐1)60/62 HRC surface hardness

2)1mm minimum depth of tempering after grinding

3)ensure the concentric rotation of the races

4)lubrication suitable for the application.
